10.1 inch is a LVDS interface, TFT, full view Angle, resolution of 1280*800 TFT Capacitive Touch Screen
Product Description
10.1 inch is a LVDS interface, TFT, full view Angle, resolution of 1280*800 TFT Capacitive Touch Screen, industrial drive touch IC, suitable for medical, industrial control industry and other outdoor related products, can achieve visibility under the sun.
Product parameter details
| Model | HG101WX019T01 | Application industry | Medical, industrial control |
| Size | 10.1 inch | Arrangement | 1280*800 |
| Display size | 216.96mm*135.6mm | External dimensions | 229.5mm*149.1mm*4.28mm |
| Viewing Angle | ALL | Luminance | 430cd/m2(customizable) |
| Contrast ratio | 1000 | NTSC | 50% |
| Signal types | LVDS Interface 40PIN |
| Temperature | Operating temperature: -20℃ ~ + 60℃, storage temperature: -30℃ ~ + 70℃ |
| TP structure | G+G | Cover plate | 0.7mm Corning III |
| TP IC | Industrial ILI2511 | TP interface | USB |
| Drive board | HDMI board |
| Remark | Wide temperature products, to meet the medical industry related EMI and EMC testing standards |
Description of products

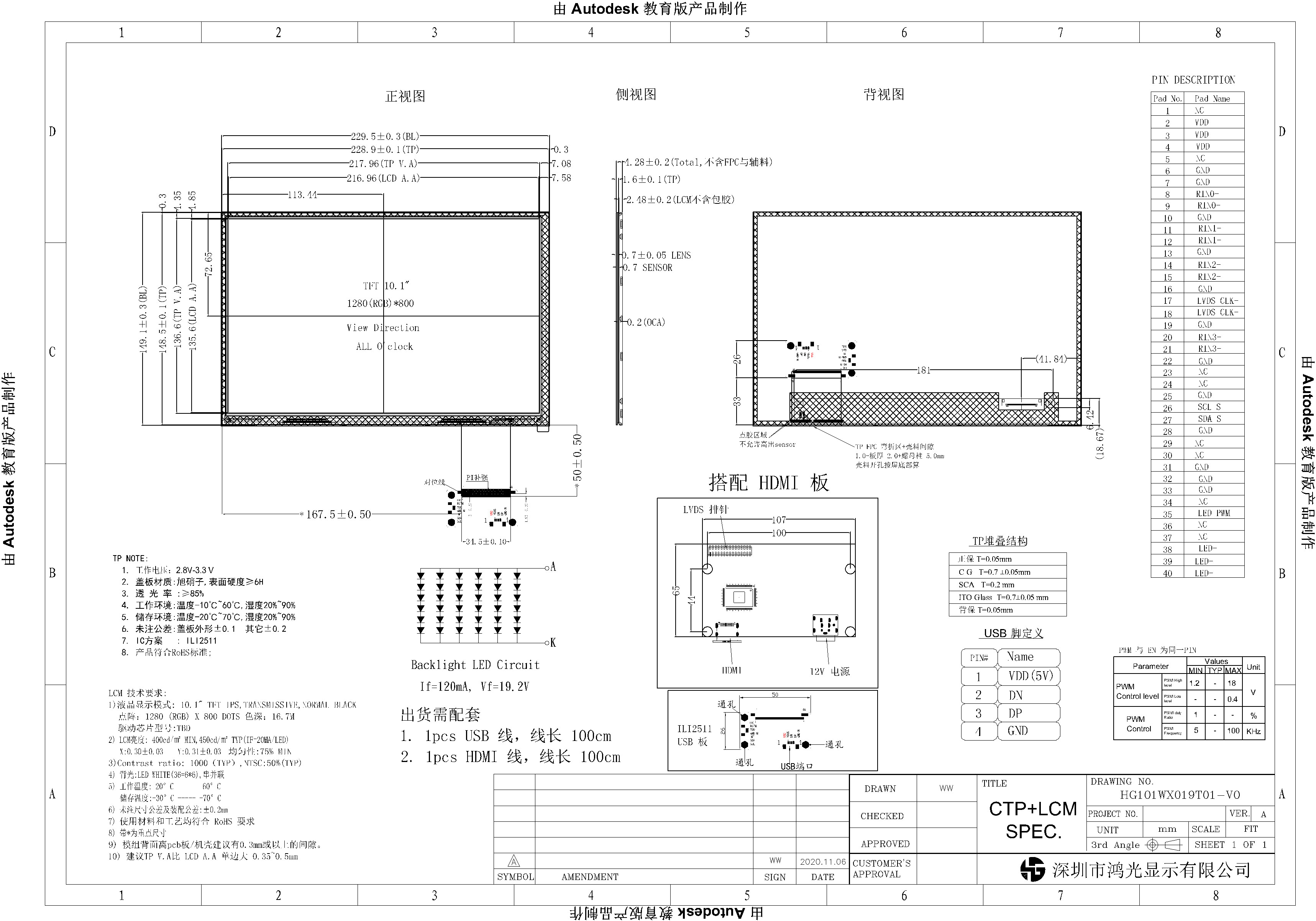

TFT is 10.1 inch HG101WX019T01 LCM+CTP, the resolution is 1280*800, and the display effect is full view.
It is composed of TFT LCD panel, driver IC, FPC, backlight source and CTP.
It is a standard series of wide temperature products with 1280*800 resolution, meeting the test of the medical industry TFT Capacitive Touch Screen;
Lvds-4 channel interface 40PIN, can work in -20℃~60℃, storage temperature: -30℃~70℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards;
If you can't find a suitable one, please contact us for a recommendation.
Packaging and transportation
Packaging details:
1.All products are packaged correctly to ensure safety.
2.For small-size products, we use the tray = carton.
3.For larger sizes, we use knife cards + foam + cartons..
4. We can also design packaging according to customer requirements.
Transport
1. Through express delivery (3-7 working days),
2. Marine transportation (15-30 days), suitable for conventional mass production.
3. Air transport (4-5 days), from airport to airport.
